Tiller drive

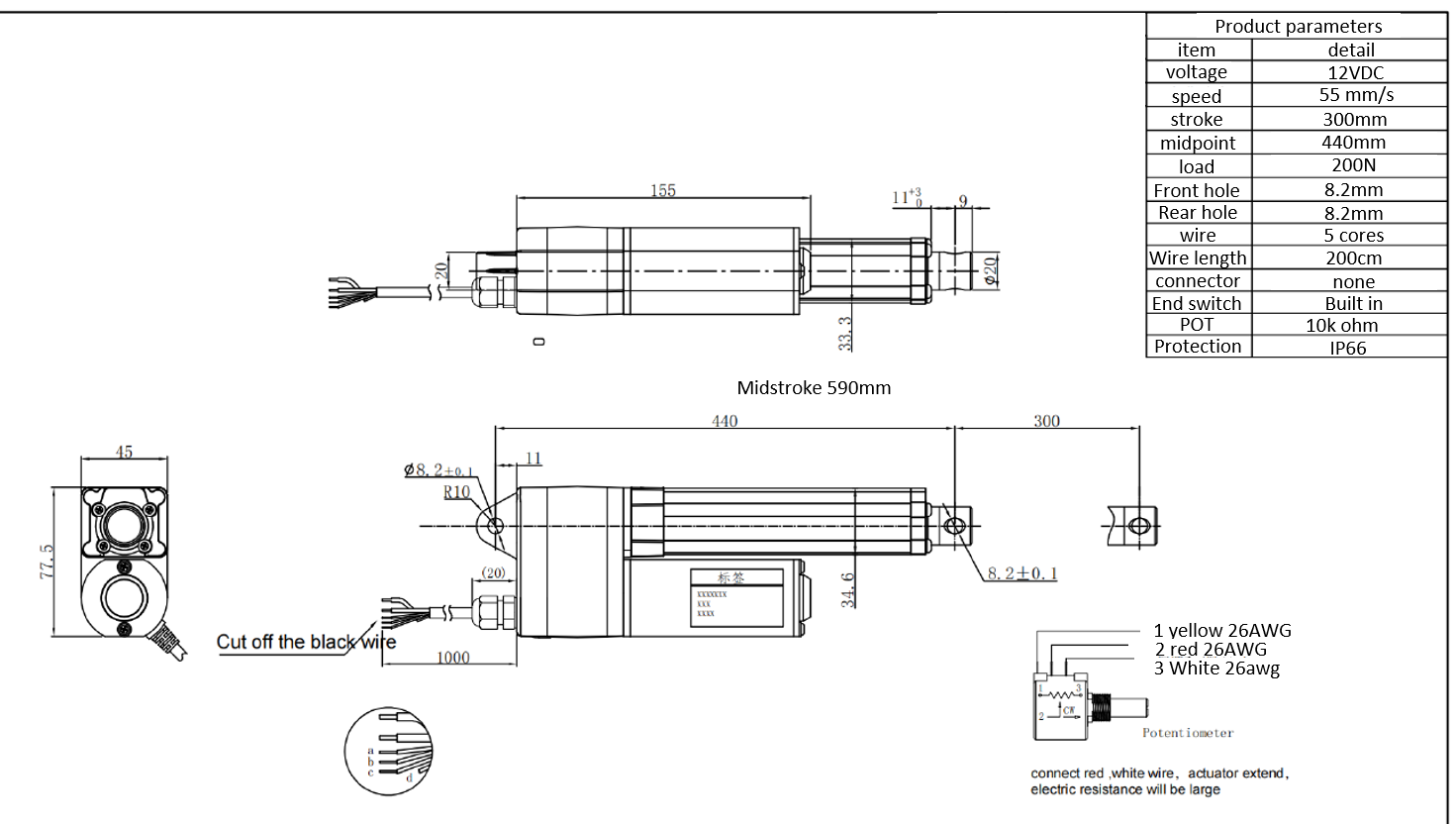

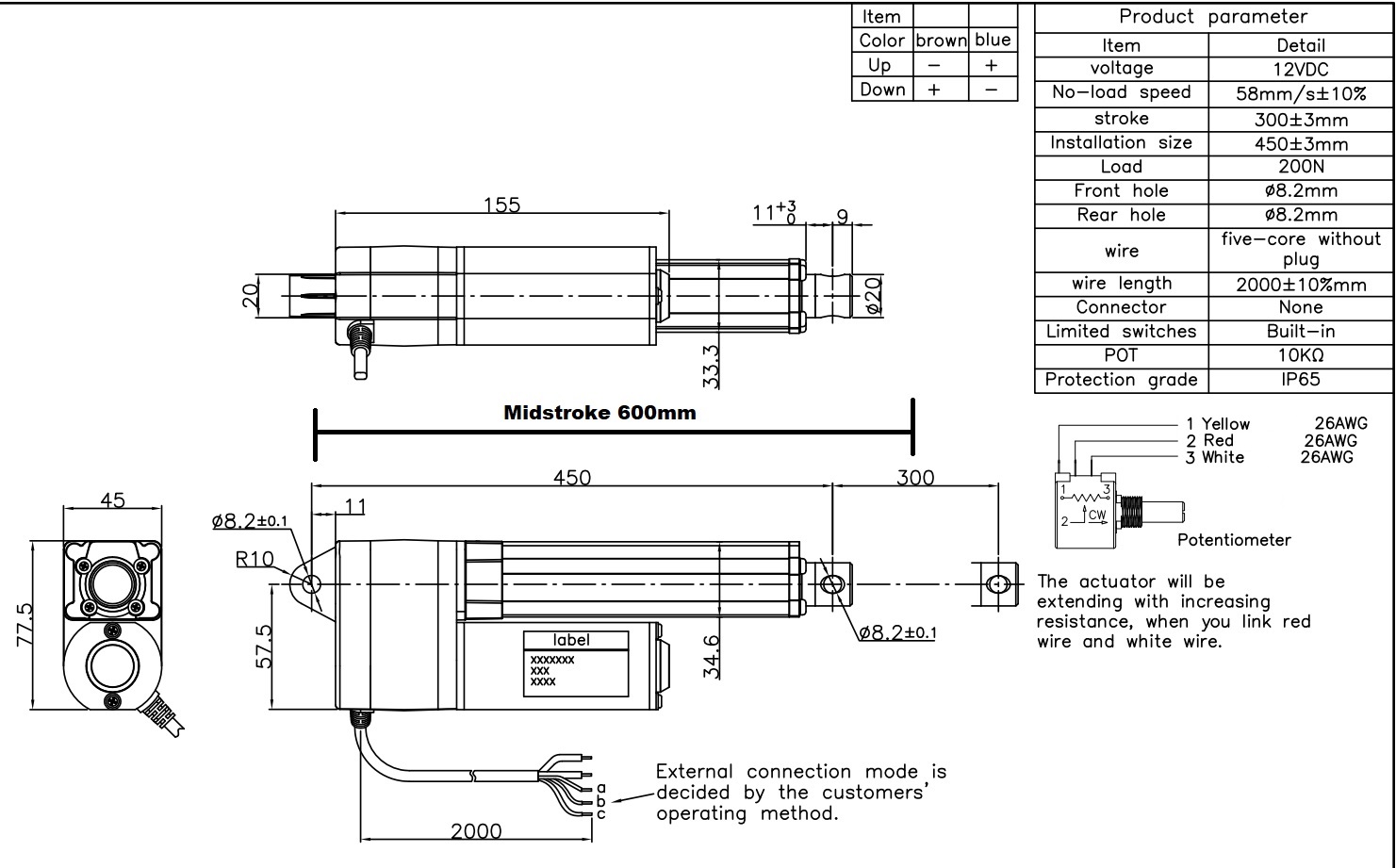

300mm stroke, 50 mm/s, 200N force
€170.00
1 year warranty
100 days return
*For Non EU countries additional import taxes may applyWithout brackets and pins.
The actuator peaks at 4.5 Amps current @ 12 volts under heavy load.
Normal operation is max 2 Amps when moving under normal loads.
During operation in regular conditions the current draw is 0.3 Amps on average @ 12 volts.
This linear actuator must be disconnected from the rudder before you can manually steer again.

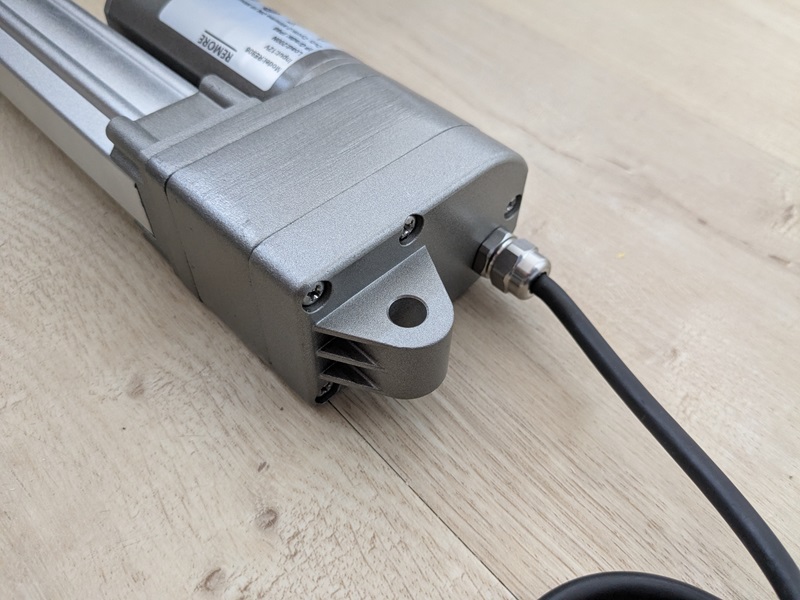

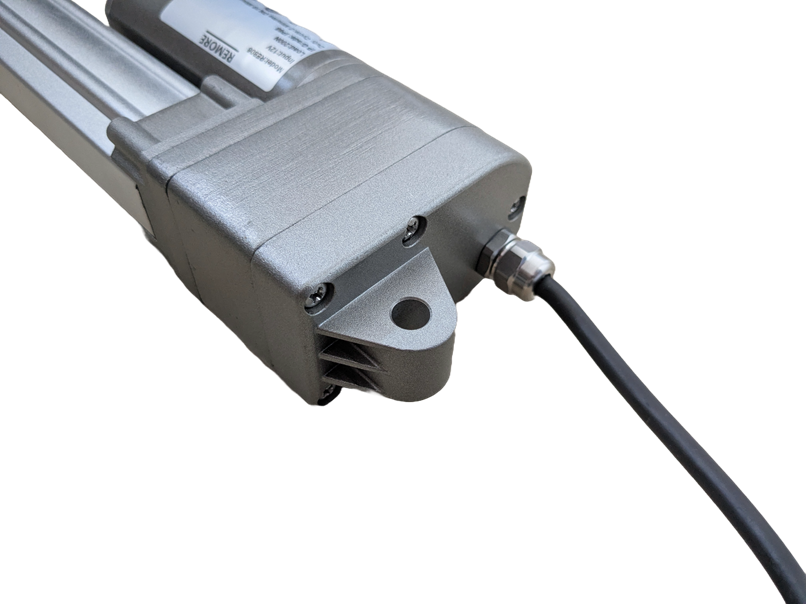

The actuator used is the same as Pelagic and thus well-proven for its use case. The actuator is the Wuxi Hongba HB-DJ809 with some special additions. The cable is 200 cm and has a better waterproof connector. It also features position feedback in the form of a variable resistance, just like any rudder feedback unit out there. This removes the need for a separate rudder position sensor.
A video of the unit in action: https://youtube.com/shorts/dpVQNGzwSr4
