Autopilot Controller v3

The brains of the autopilot including the motor controller. This box has everything that the autopilot needs, A 9 degree top notch motion sensor with compass, wifi, bluetooth, nmea input, wireless receiver and nmea input. The only thing you need to do is hook it up to your battery and motor that is controlling your rudder.

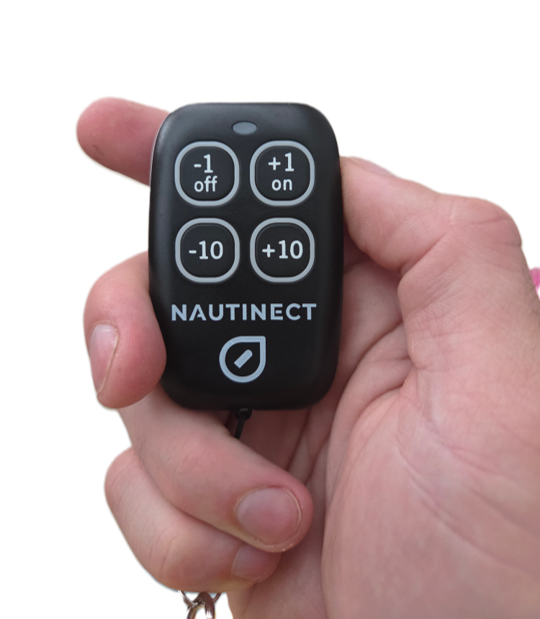

Remote

Remote Waterproof remote with 4 buttons. Hold +1 button for 1 second to turn the autopilot on. Hold the -1 Button for 1 second to turn the autopilot off.

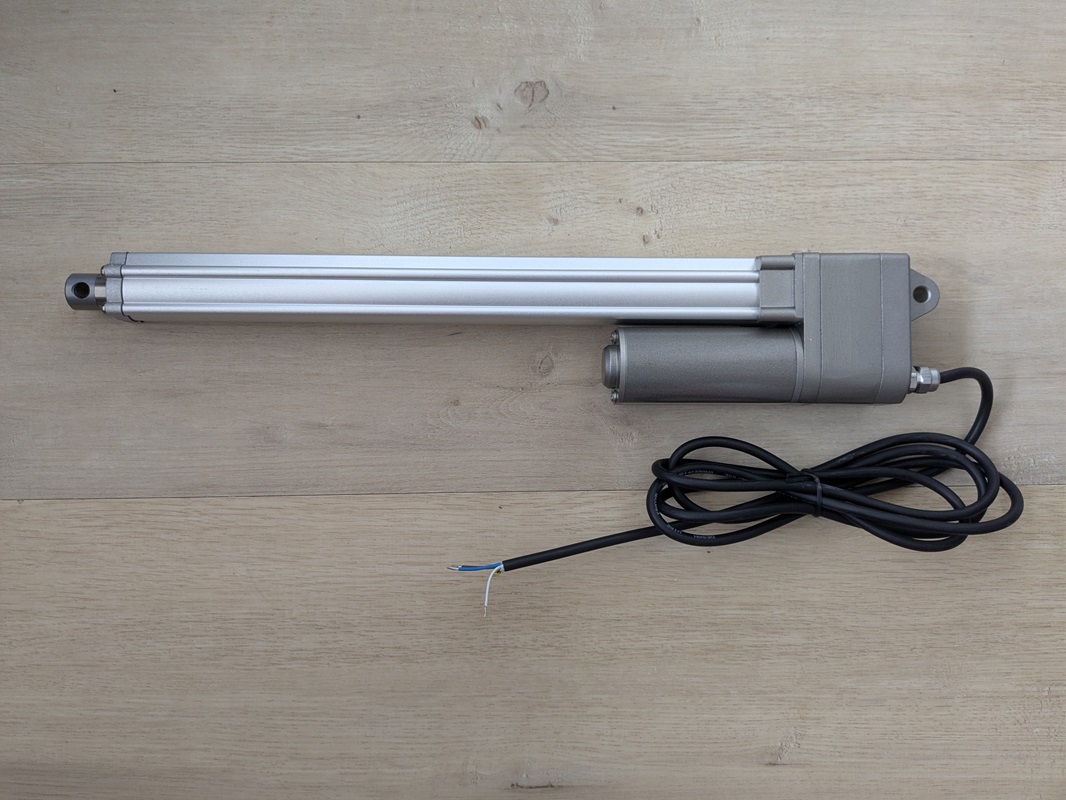

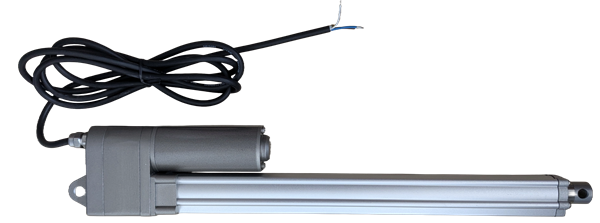

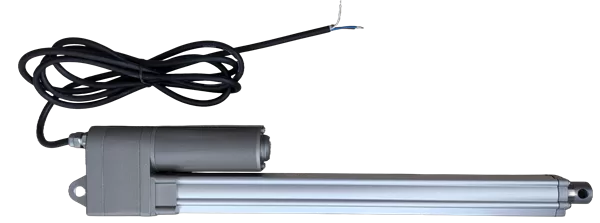

Tiller drive

300mm stroke 50 mm/s 200N force

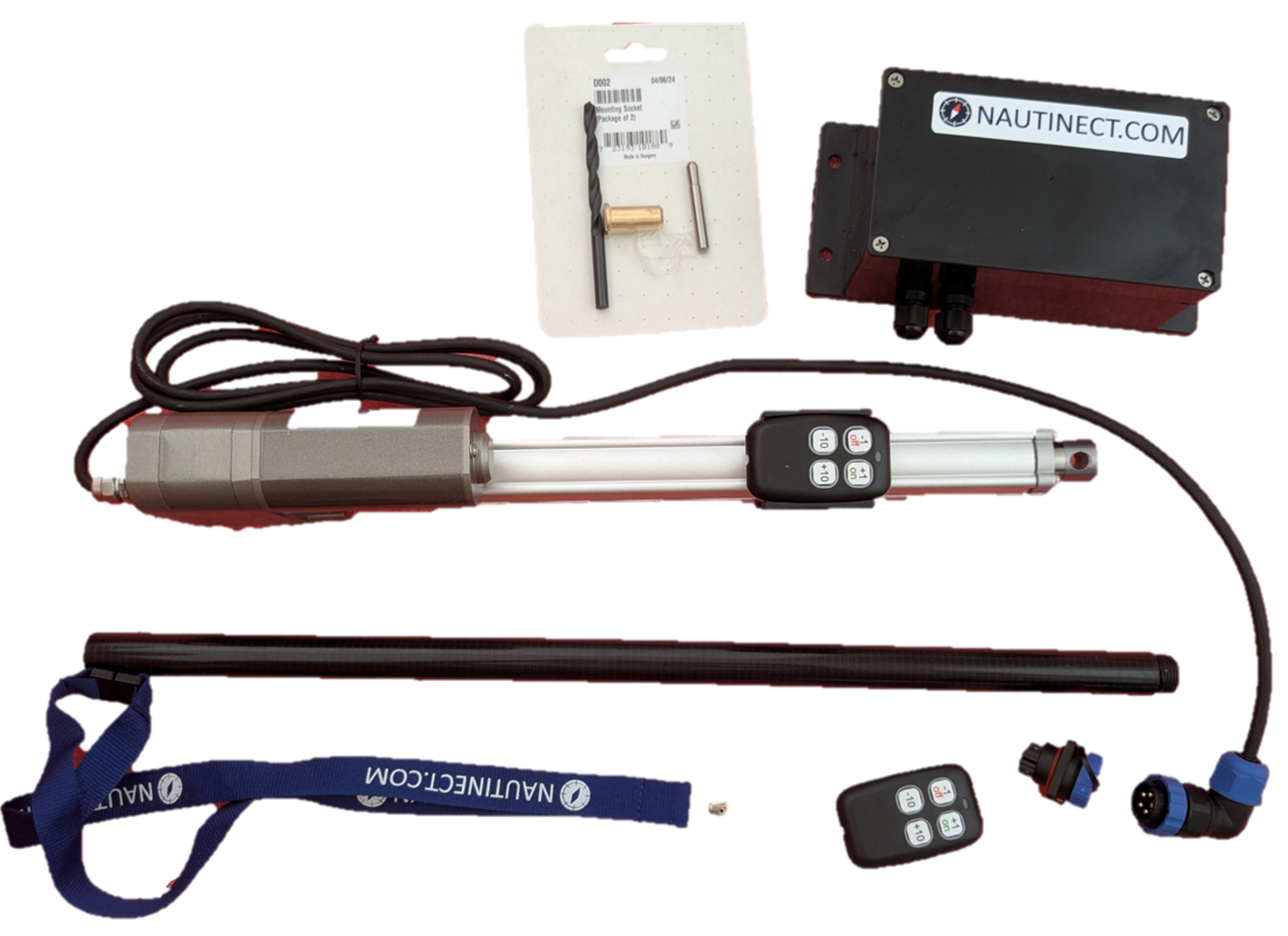

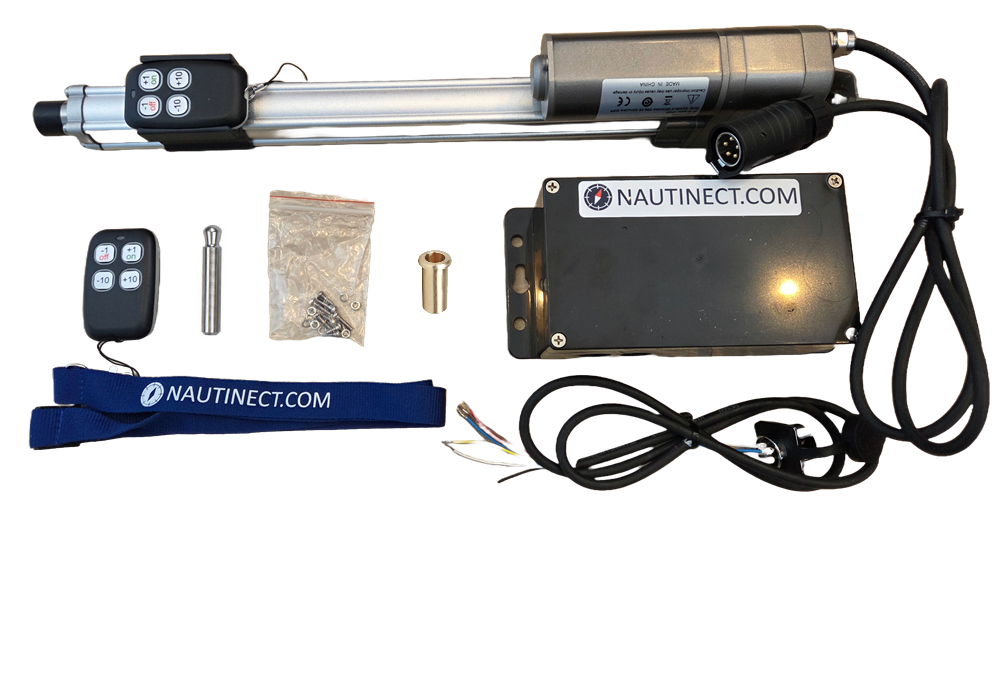

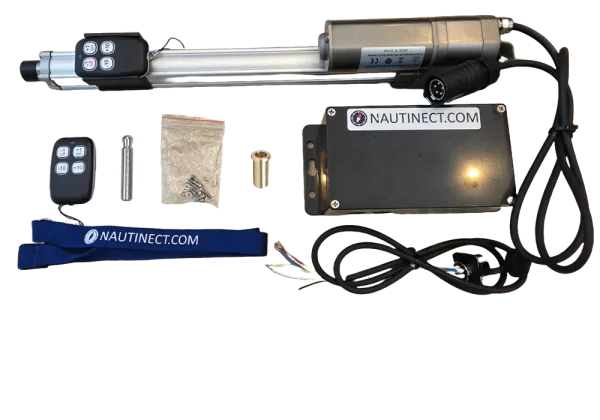

Tiller drive kit

We love the power and durability the actuator and also the form factor of having a single unit. This tiller drive is technically superior to anything comparable on the market in terms of speed, power and stroke. Direct replacement for st1000, st2000, Q047, TP12 and TP20

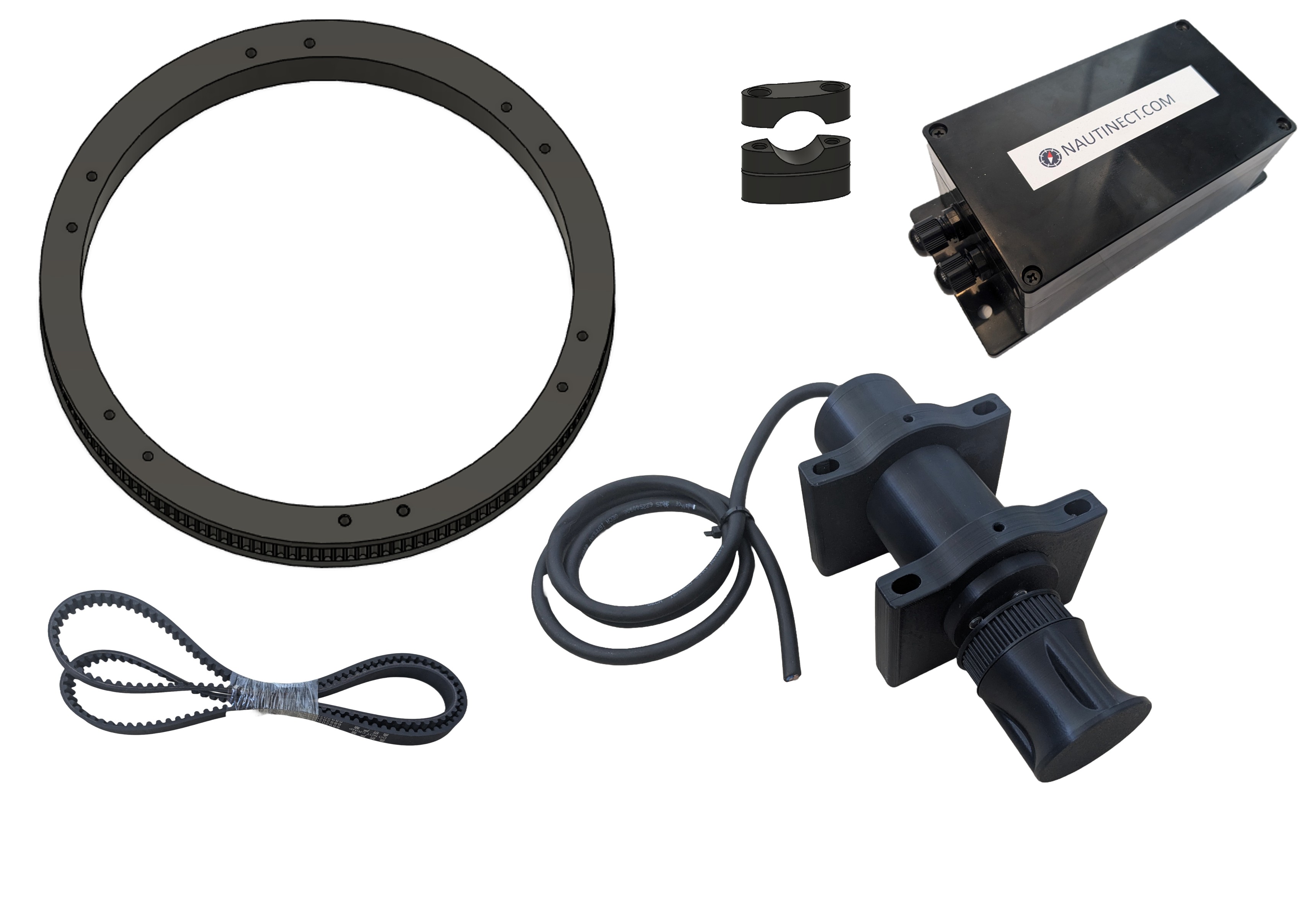

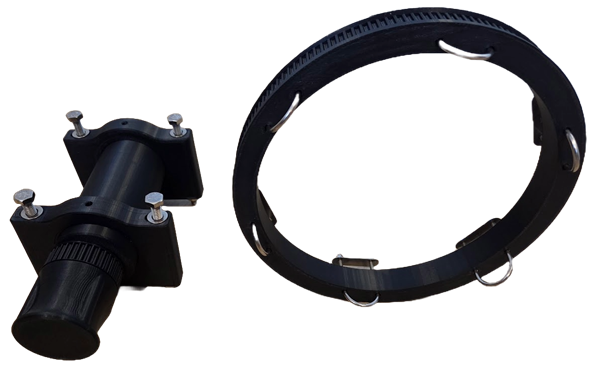

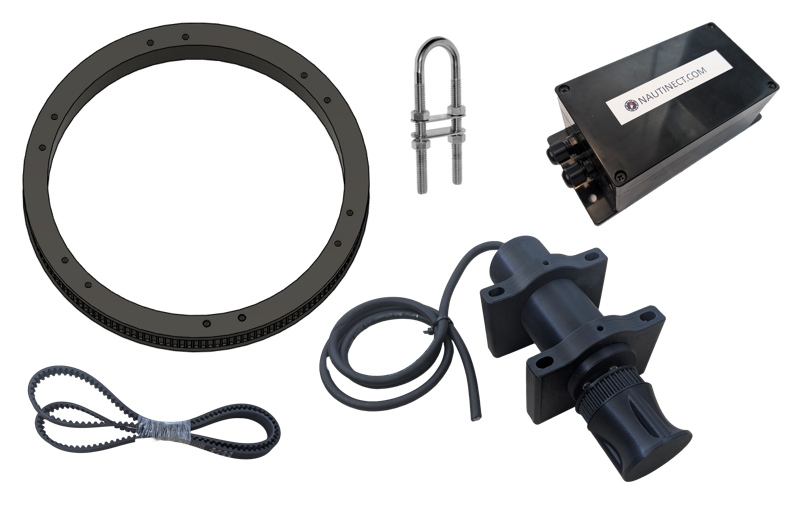

Wheel drive kit

This wheel drive outputs 60Nm of force on the wheel. It can steer any boat up to 8000kg (17000 lbs.). It can practically steer any boat as long as the wheel steers light enough.

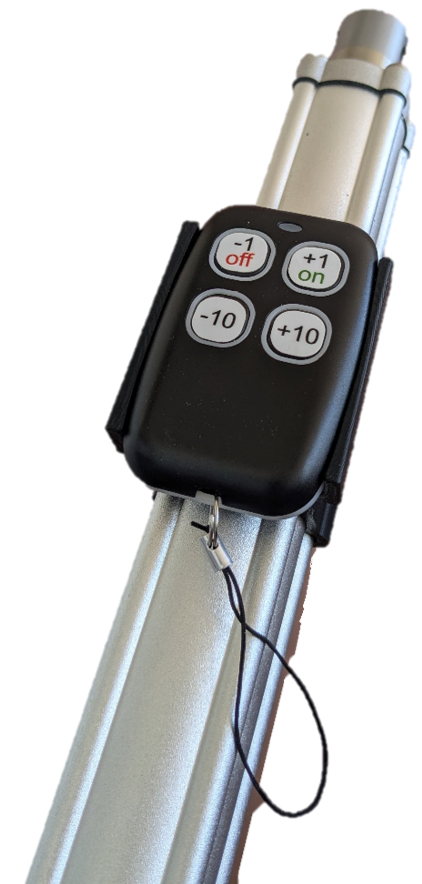

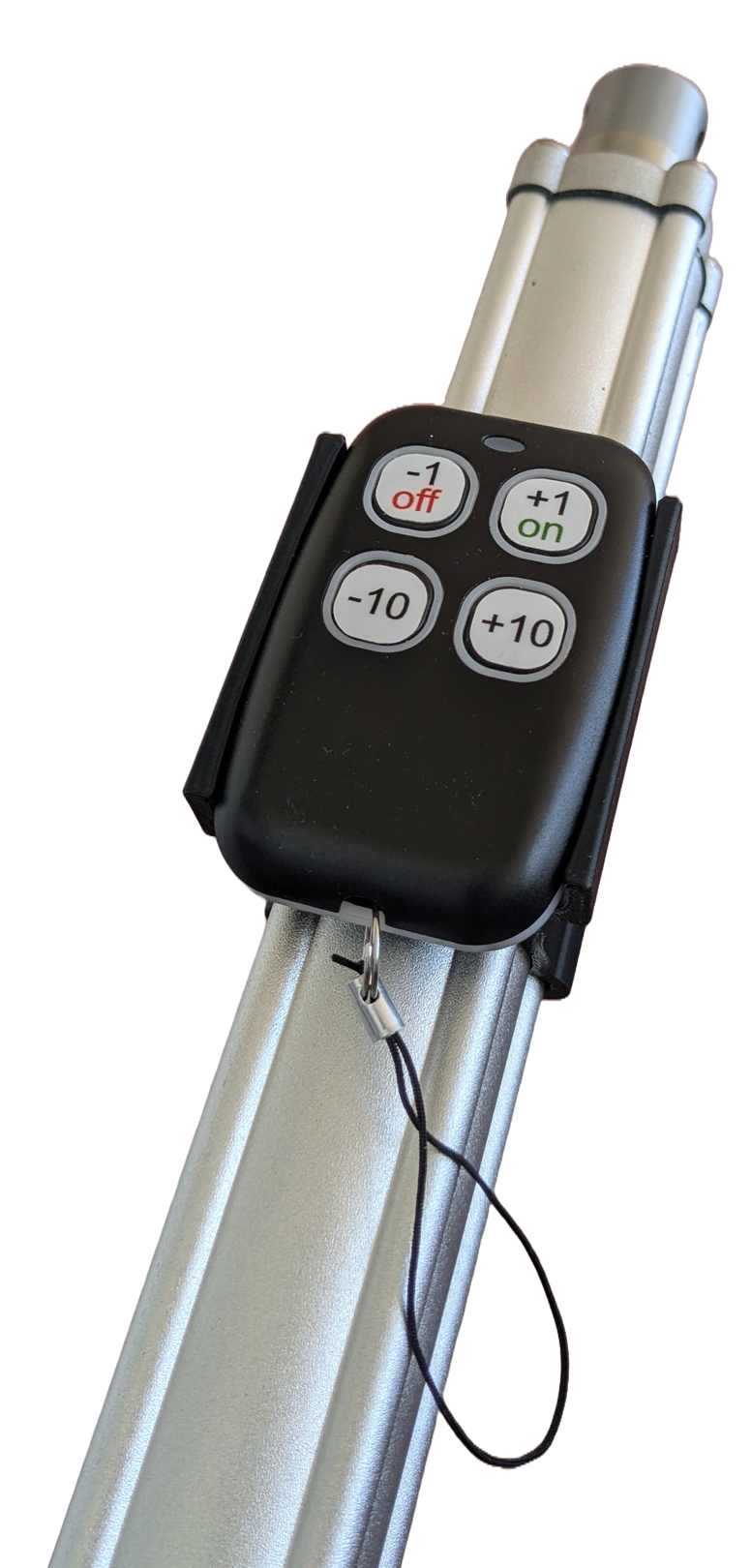

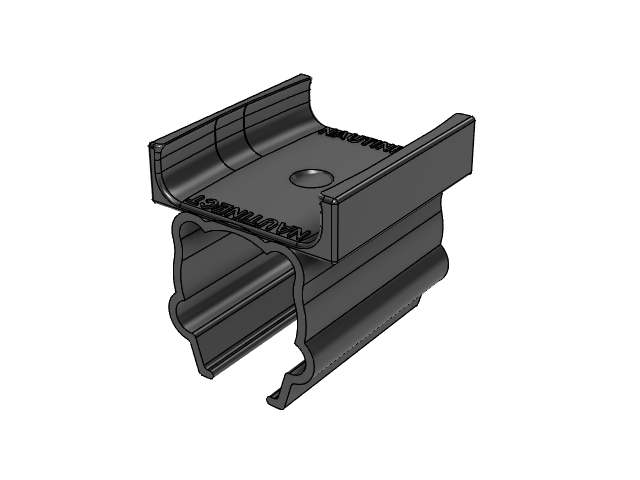

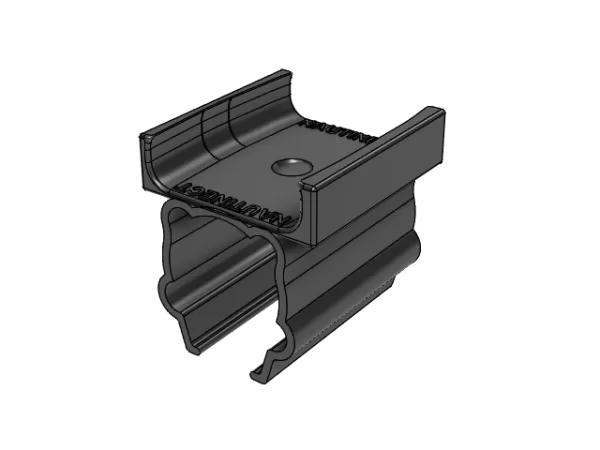

Remote bracket for tiller drive

This bracket holds the remote for the autopilot.

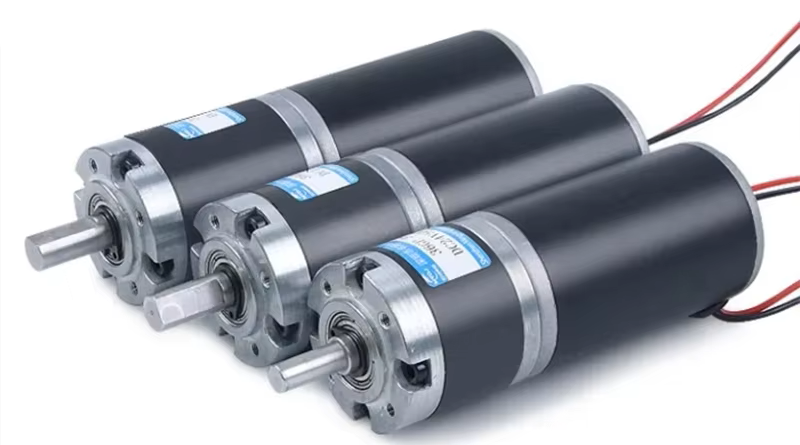

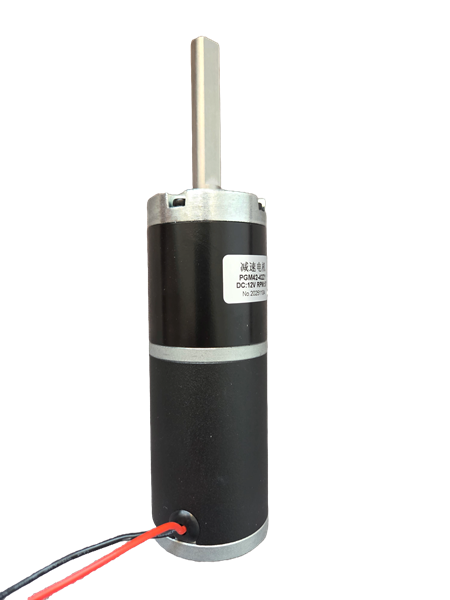

DC motor 42mm

The motor that is used in the wheel pilot.

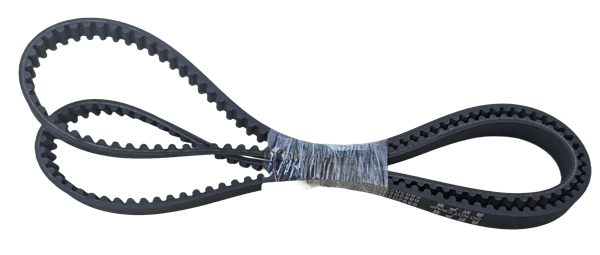

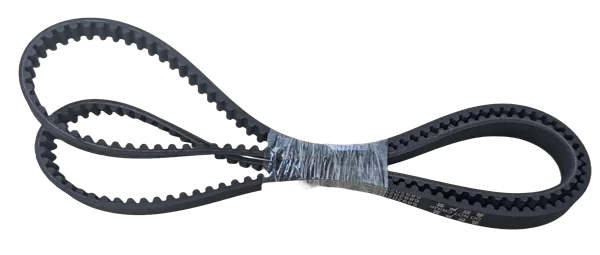

Wheel drive Belt

This belt is used in the wheel pilot. The profile is HTD 5m and standard length is 1140mm.

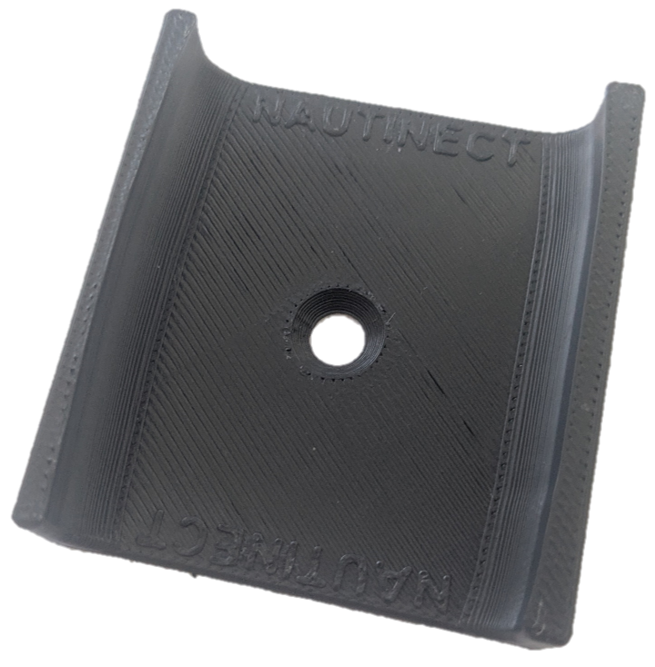

Remote bracket

This bracket holds the remote. It can either be glued or screwed on a flat surface on the boat. The remote is not included

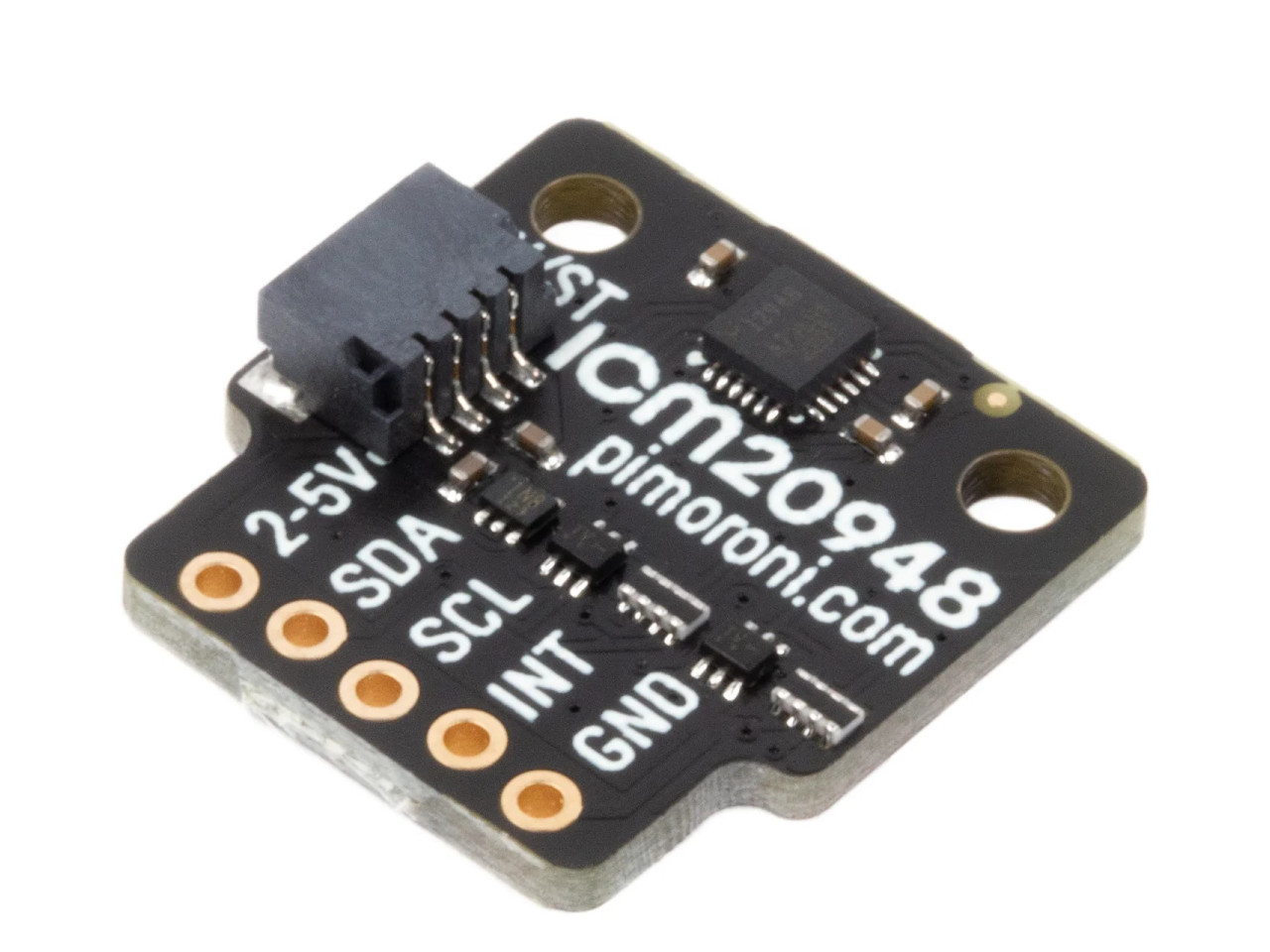

Compass module ICM20948 Pimoroni

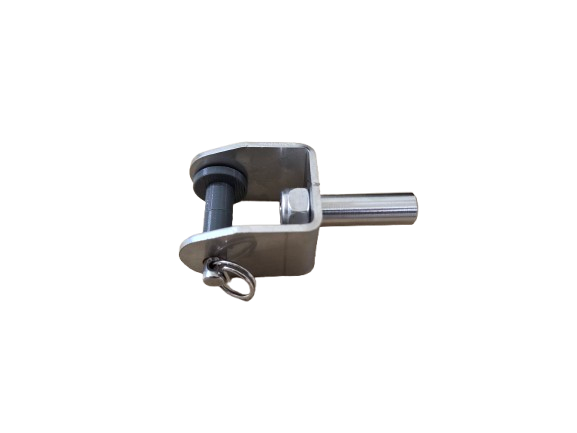

bracket linear actuator

Fits the linear actuator and a Raymarine/Simrad D002 tiller socket

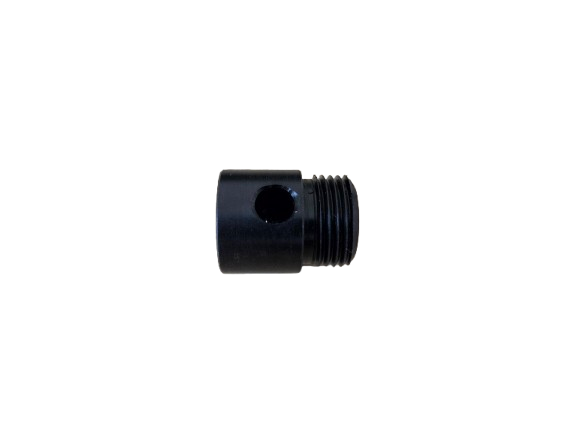

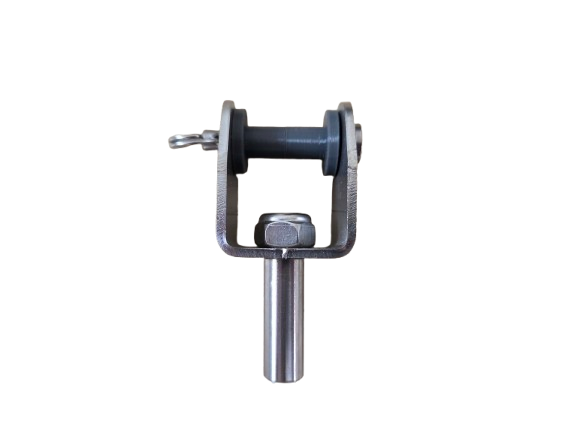

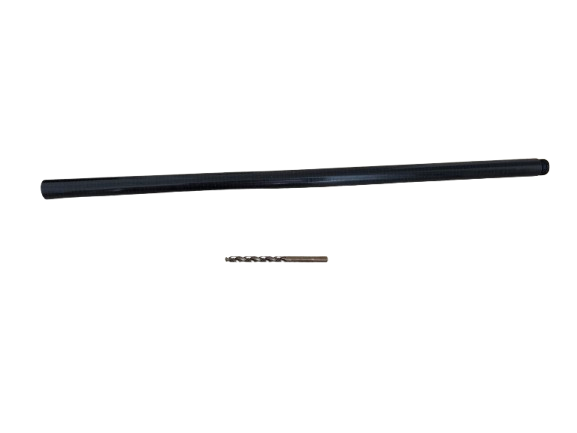

Tiller extension

Tiller extensions. By removing the standard default endcap, this extension can be used to fit the Raymarine/Simrad D001 Tiller pin.

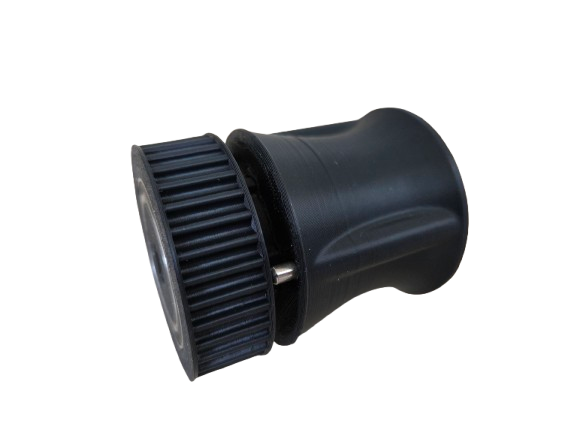

Wheel drive clutch
