Control display

5 (2 reviews)

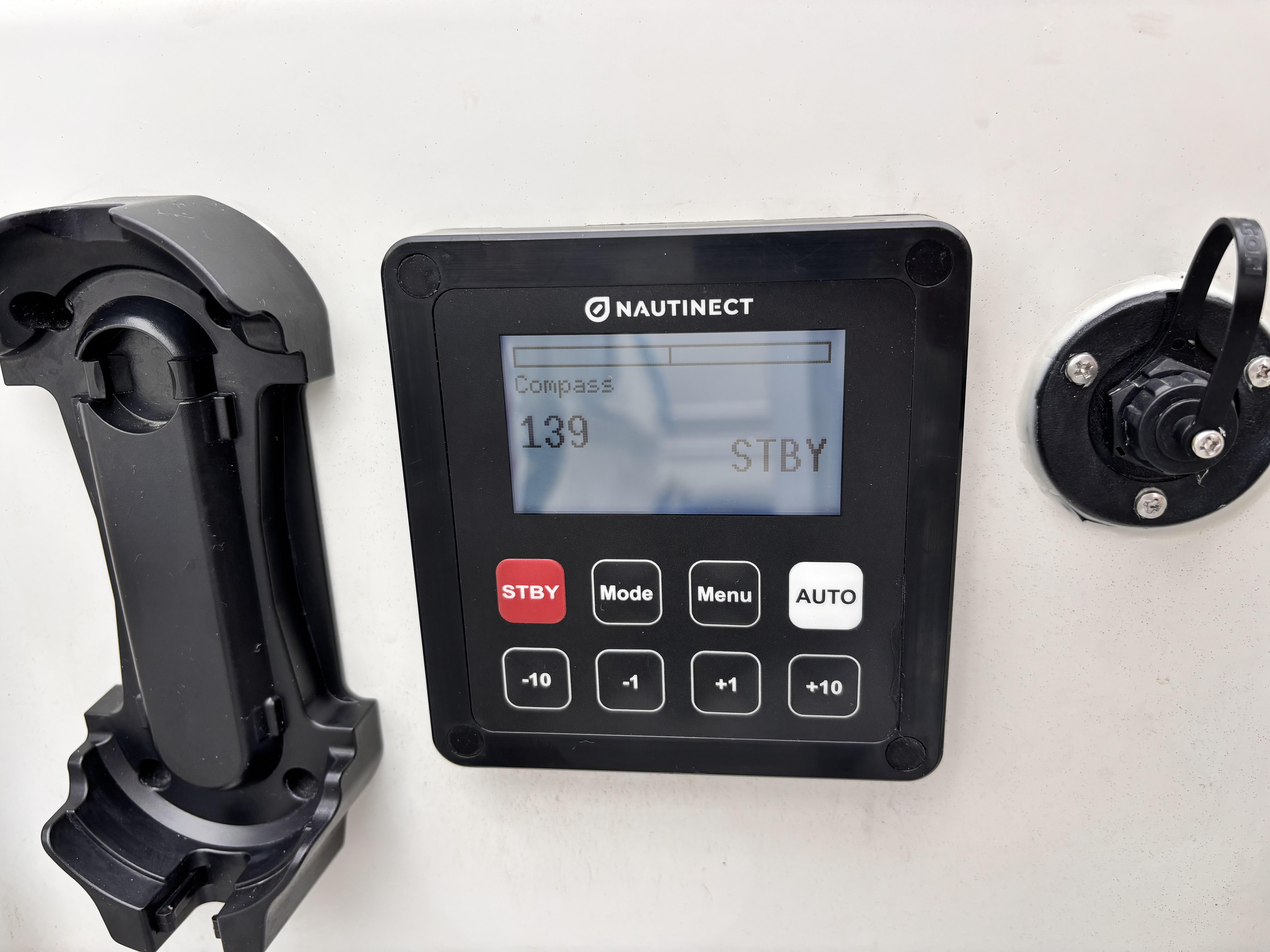

Control head for the autopilot.

€249,00
In stock, ships within 1 business day
Options
  • Worldwide shipping: ~3 days in Europe, 5 days USA, 8 days elsewhere. Costs shown at checkout.
  • 100 days return, no questions asked
  • 1 year warranty, support from the designer
Secure checkout via Stripe: Visa Mastercard iDEAL PayPal Klarna Bancontact Apple Pay Google Pay

Not sure this fits your boat? Use the 1-minute autopilot finder or ask a question.

Prices for non-EU countries exclude VAT; local import duties may apply.

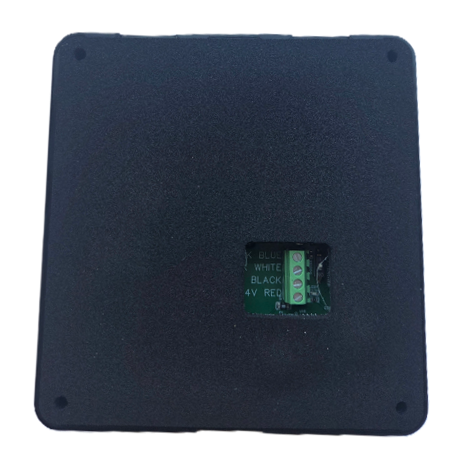

Connection will work over nmea2000 network, Or if you dont have a network, connect them directly with 2 wires. Wireless (BLE) connectivity is also possible.

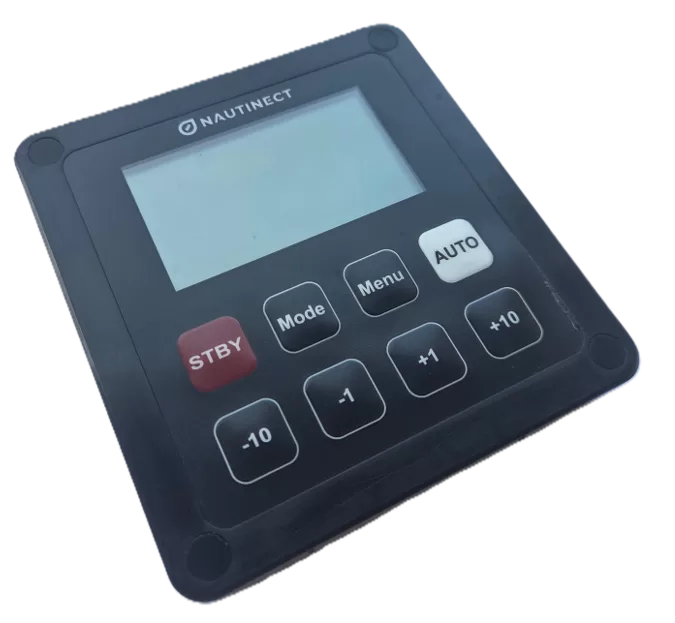

Injection moulded UV proof ASA.  It ComeS with a silicone cover. Has physical buttons with tactile feedback and a sun readable lcd. The housing is interchangeable with Raymarine/simrad/B&G control displays

  • Autopilot Display

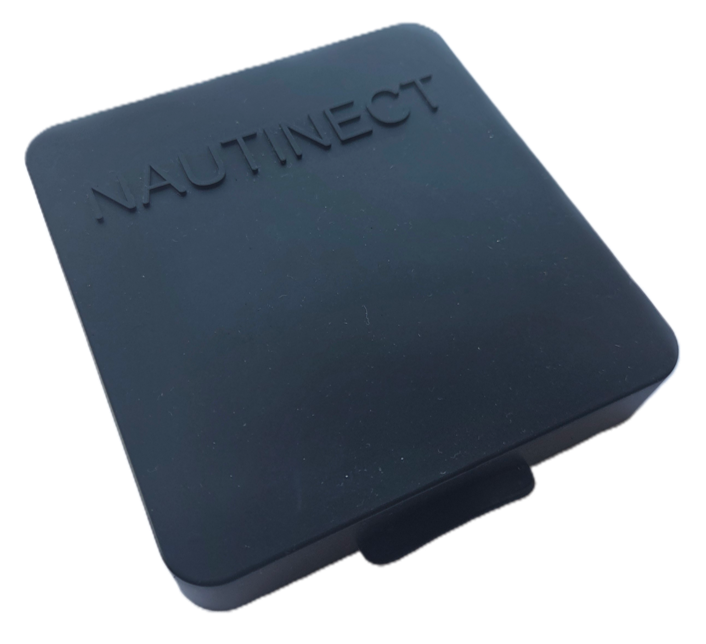

  • Silicone cover
  • 4x Stainless 316 screws
  • 4x Silicone patches to cover the screws
FileType
Manual display.pdf Manual Download

Customer reviews 5/5 · 2 reviews

Write a review
Peter
08 Sep 2026

A brilliant addition to the Autopilot Controller v4. Easy to install. Works flawlessly, including via Bluetooth.

Lucas
03 Jul 2026

Easy to install and works flawless in combination with the autopilot controller!

Write a review

Questions & answers

That's a nice looking head unit. Does it have (a) any button illumination and (b) any means of dimming the buttons or LCD. Thank you 21 Sep 2026
Asked by J************
Thanks Jonathan. a) The screen is illuminated by white LED's, the buttons are not b) The screen can be dimmed to 5 levels, suitable for night sailing. The high contrast large embossed buttons are easy to recognize during with very low ambient light. I am sure after a few nautical miles, the positions of the buttons are in your muscle memory.
P*********** · 21 Sep 2026
Thanks for your answer Pieter. Two new questions : I Suppose that the control display should work with a DIY pilot if the esp32 has the last firmware ? What caractéristics for the LCD screen ? Thanks. 07 Sep 2026
Asked by J********
Yes it will work of course. The new firmware has the characteristic embedded, there no need to know it. But the communication protocol is open. You can find details here: https://github.com/pieteroskam/autopilot#communication-channels
P*********** · 07 Sep 2026
Hello Peter. With the display, is it possible to change all the settings and parametres like wth the app ? Tanks. 07 Sep 2026
Asked by J********
Hi Jean-Marc, Yes the display can change all the parameters. The idea that the phone isn't necessary anymore and that anyone can control and tweak the autopilot.
P*********** · 07 Sep 2026
Will the schematic, firmware or anything of that sort published of this control display? 15 Jul 2026
Asked by M*****
I will publish the firmware later on. There is nothing secret about it, as the communication protocols are already open.
P*********** · 16 Jul 2026
Pieter, How will the Head Unit be powered if used only in Wireless BLE mode? Regards, Malcolm 29 Mar 2026
Asked by M*************
By 12V /24V from your boat or via USB. You may choose, both are possible. You don't need a NMEA2000 network. A simple 2 core shieled wire will work as well.
P*********** · 29 Mar 2026

Ask a question

Answered by Pieter, usually within a day.
