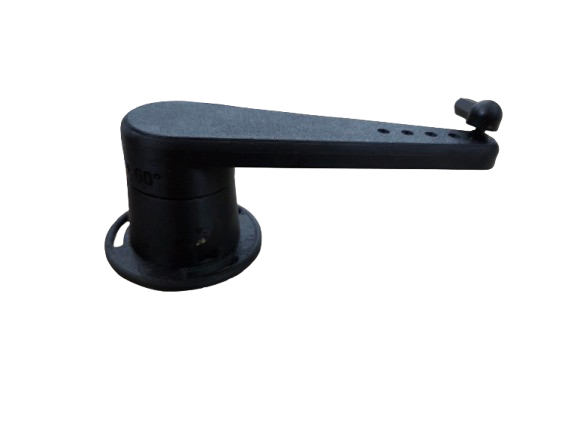

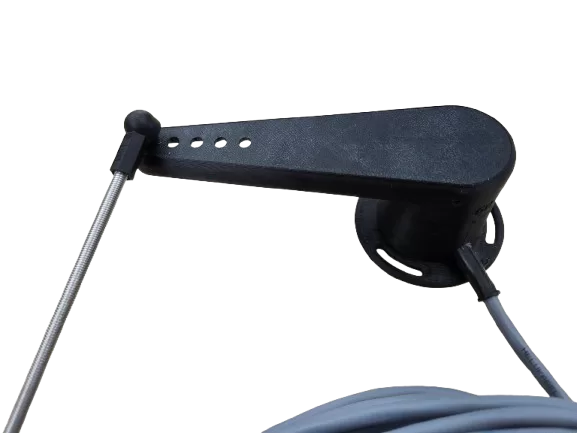

Rudder reference unit
5 (2 reviews)For the ideal operation of your sailing boat's autopilot, the rudder angle sensor is an essential component that analyzes the movements of your rudder.
- Worldwide shipping: ~3 days in Europe, 5 days USA, 8 days elsewhere. Costs shown at checkout.
- 100 days return, no questions asked
- 1 year warranty, support from the designer
Not sure this fits your boat? Use the 1-minute autopilot finder or ask a question.
Prices for non-EU countries exclude VAT; local import duties may apply.
Brown should be connected to positive, green to ground and white is the signal (wiper) cable. The rudder sensor is interchangable with Raymarine rudder sensors and the Garmin GRA 10
The rudder sensor greatly improves the steering accuracy. Steering more precisie with less movements resulting in better sailing and a better power consumption. The rudder sensor also serve as an end-stop so the actuator will not go beyond it limits resulting in possible mechanical overloads.

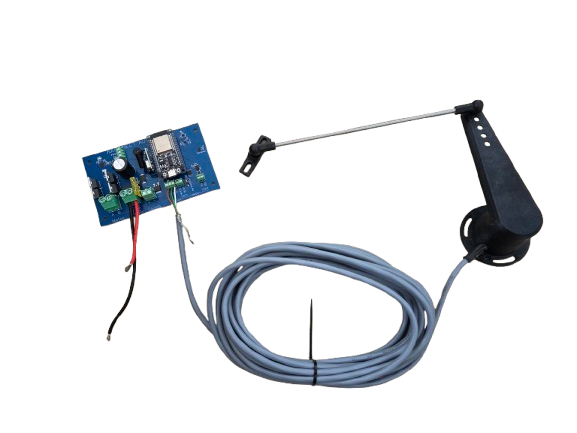

Connection to Nautinect controller.
Brown --> + (positive)
Green --> - (ground)
white --> s (Signal
| File | Type | |
|---|---|---|
| rudder sensor manual.pdf | Manual | Download |
Frequently bought together
Customer reviews 5/5 · 2 reviews
Write a reviewWorks absolutely flawless. Easy install.
I added the rudder sensor to the autopilot later. This makes the autopilot even more accurate. It is easy to connect. However, a diagram would be appreciated so that it is clear which color wires go to the connector.
